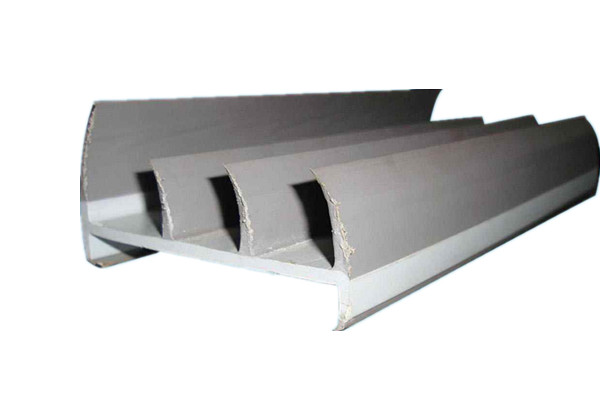

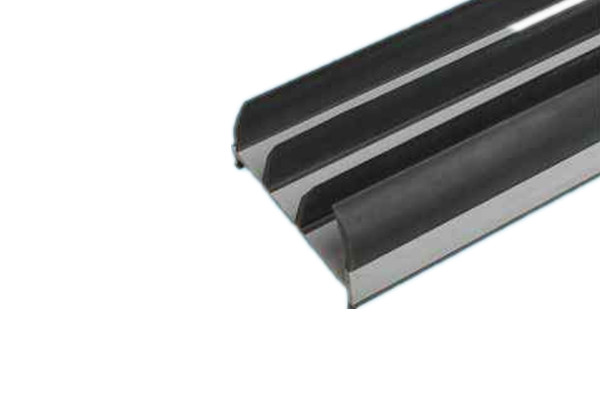

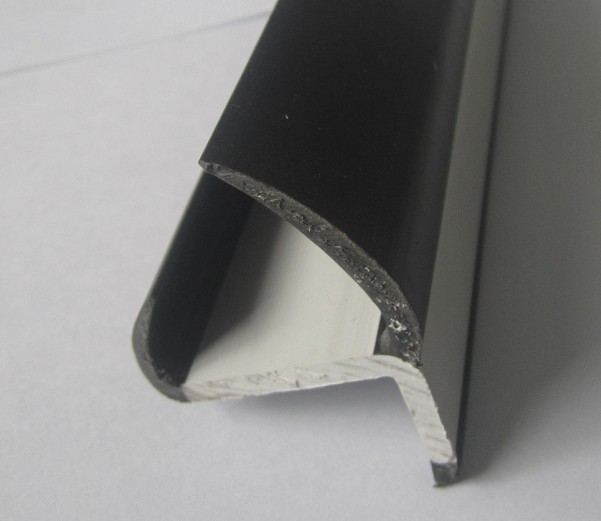

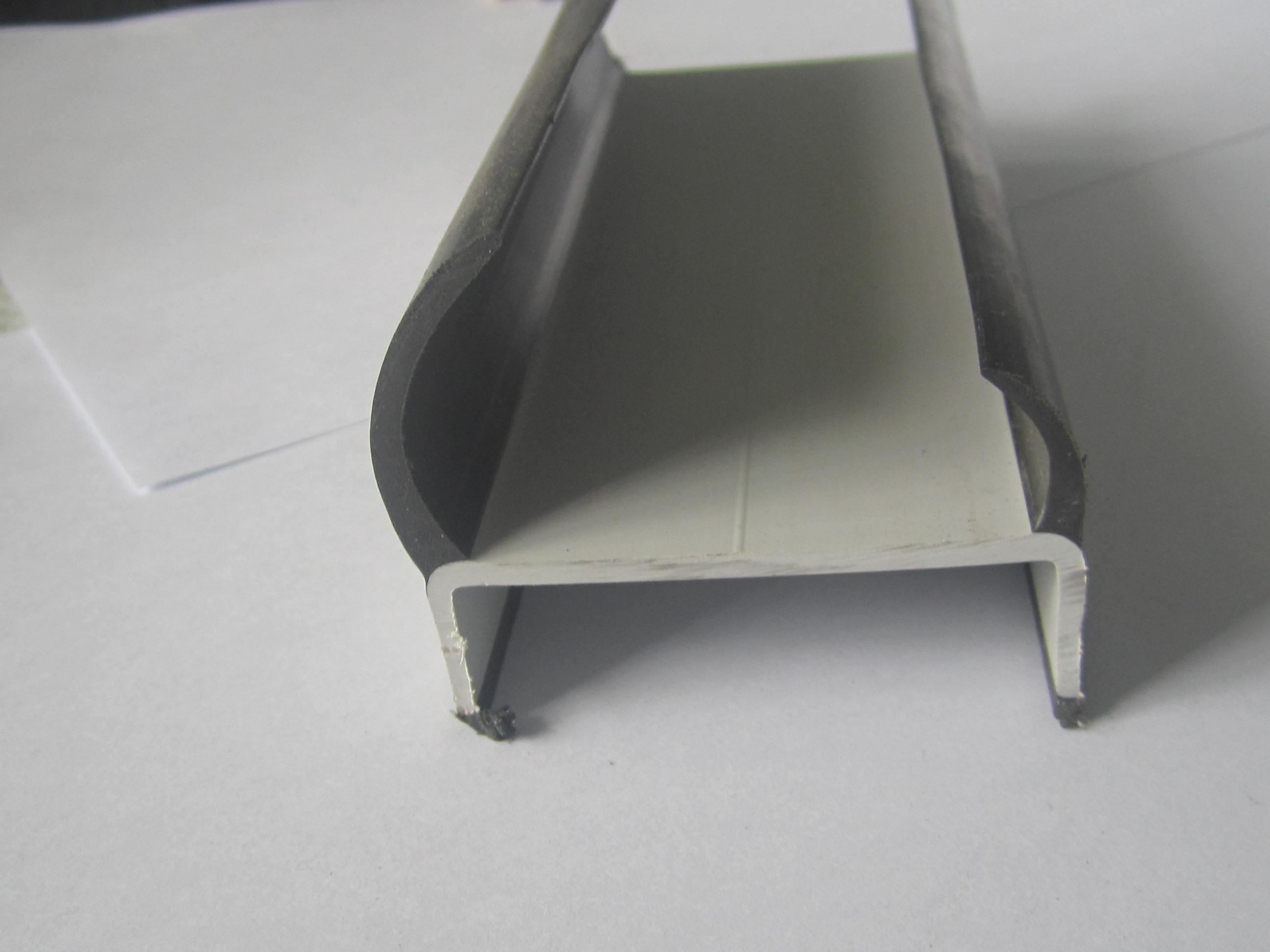

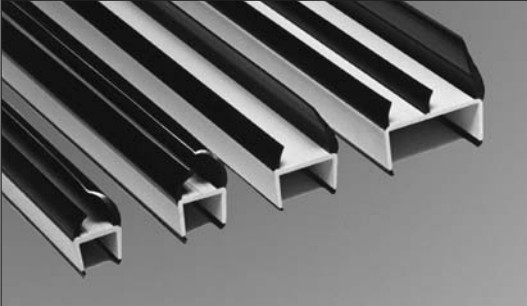

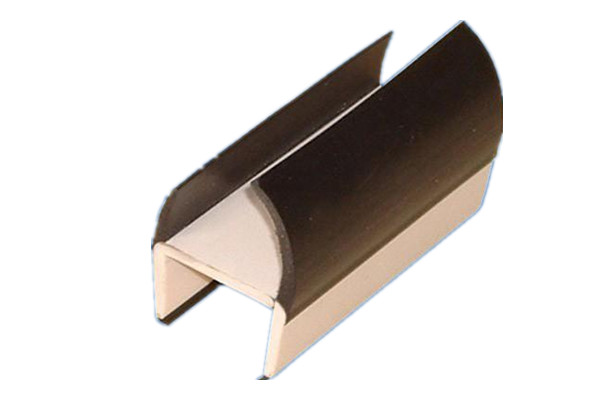

Container door seal



Feature:
Material: PVC rigid carrier with flexible lip
U part (hard PVC) snapping the door frame firmly
Soft part supply excellent seal
Convenient to install
Dimension includes: 18mm. 20mm.25mm,30mm,35mm,40mm,45mm,50mm

Application;
 Widely used in the container door and van door

If the cross sections shown here are not suitable for your specific application, we can produce a customized profile to meet your needs
ITEM NO. Application
(thickness Panel)(mm)

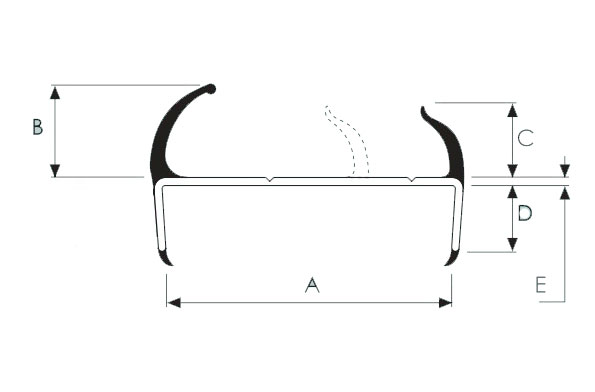

No. of Lips Length (m) A(mm) B(mm) C(mm) D(mm) E(mm)
BH-087 19 2 4 or 5 19 25.4 10 18 13
BH-088 21 2 5 21 27 13 20 3
BH-089 30 2 5 30 27 13 24 3
BH-090 53 3 5 53 30 13 28 3
BH-091 83 3 5 83 28 20 21 3
