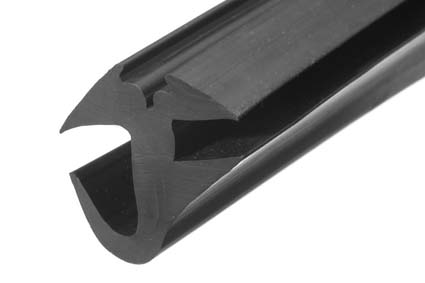

Glazing Rubber
Feature:
Material: EPDM
Excellent weathering and ozone resistance properties
Used in windows and main body,door and main body
Filler to strength the clamp of the window and glass
Install easily using hand tools and lubrication applied
Provide optimal protection form dust, water and other irritants in the external environment
Application
Widely used in transport equipment, as well as on portholes of meter boxes and on sliding gates, and is offered in-line or off-line for security.

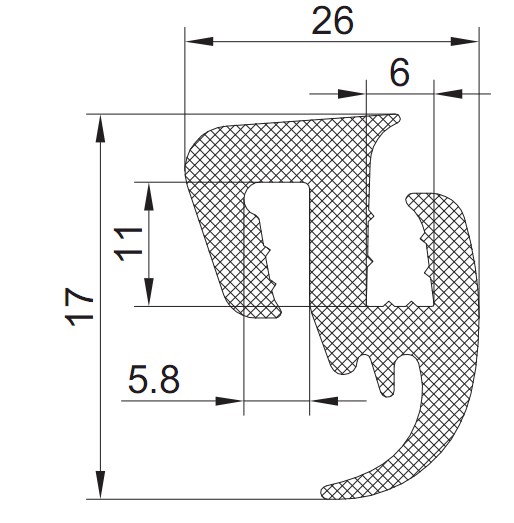

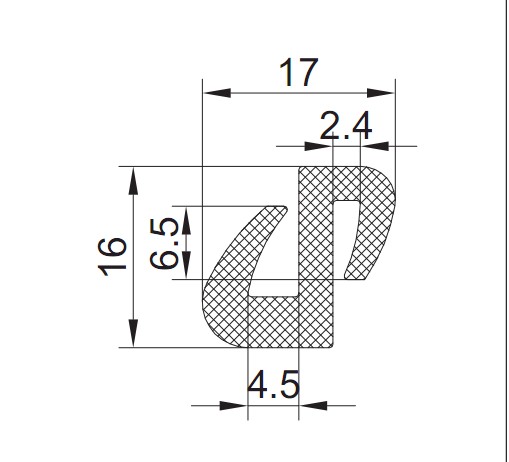

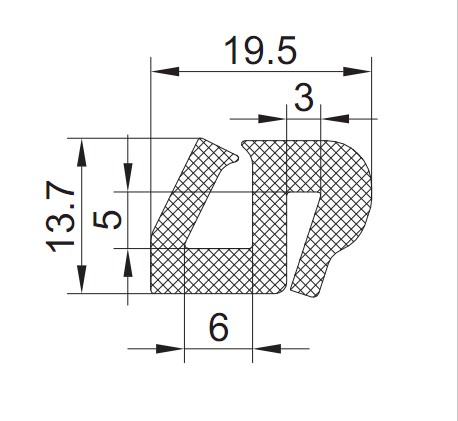

If the cross sections shown here are not suitable for your specific application, we can produce a customized profile to meet your needs
| Item NO | Dimension ( in mm) |
Bending radius |
Weight | |||||
| BH-028 | A | B | C | D | E | F | (in mm) | (g/m) |
| BH-029 | 4 | 2 | 4 | 13 | 5.5 | 5.5 | 30 | 154 |
| BH-030 | 4 | 2.5 | 7 | 16 | 7 | 7 | 70 | 235 |
| BH-031 | 6 | 2.5 | 7 | 18 | 7 | 7 | 70 | 270 |
| BH-032 | 3 | 1 | 4 | 11.6 | 4.5 | 6 | 35 | 145 |
 |
 |
 |
| BH033 | BH034 | BH035 |
